01

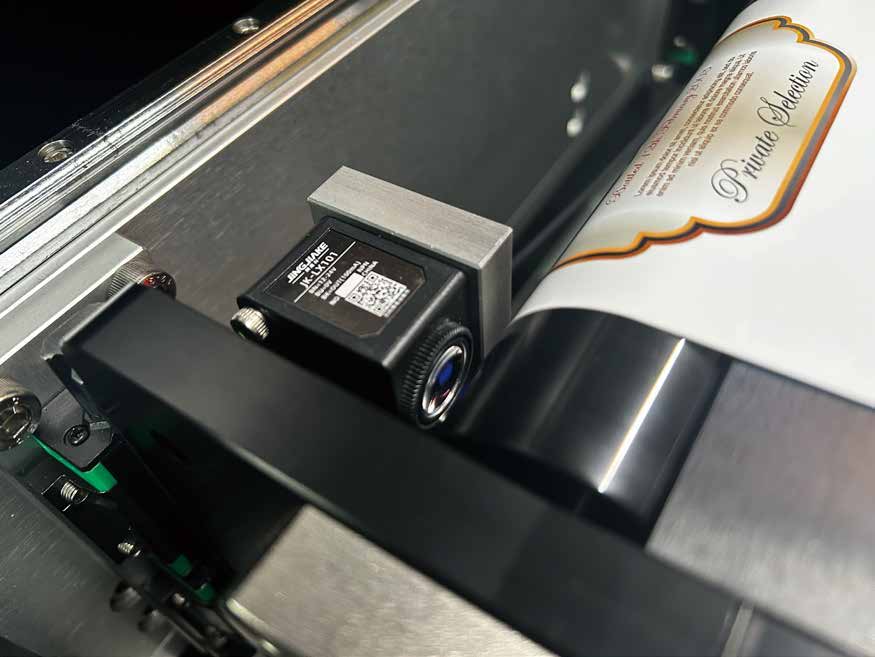

Label sensor for mark tracking
Front and back mark tracking sensors help achieve precise overprinting of printed images.

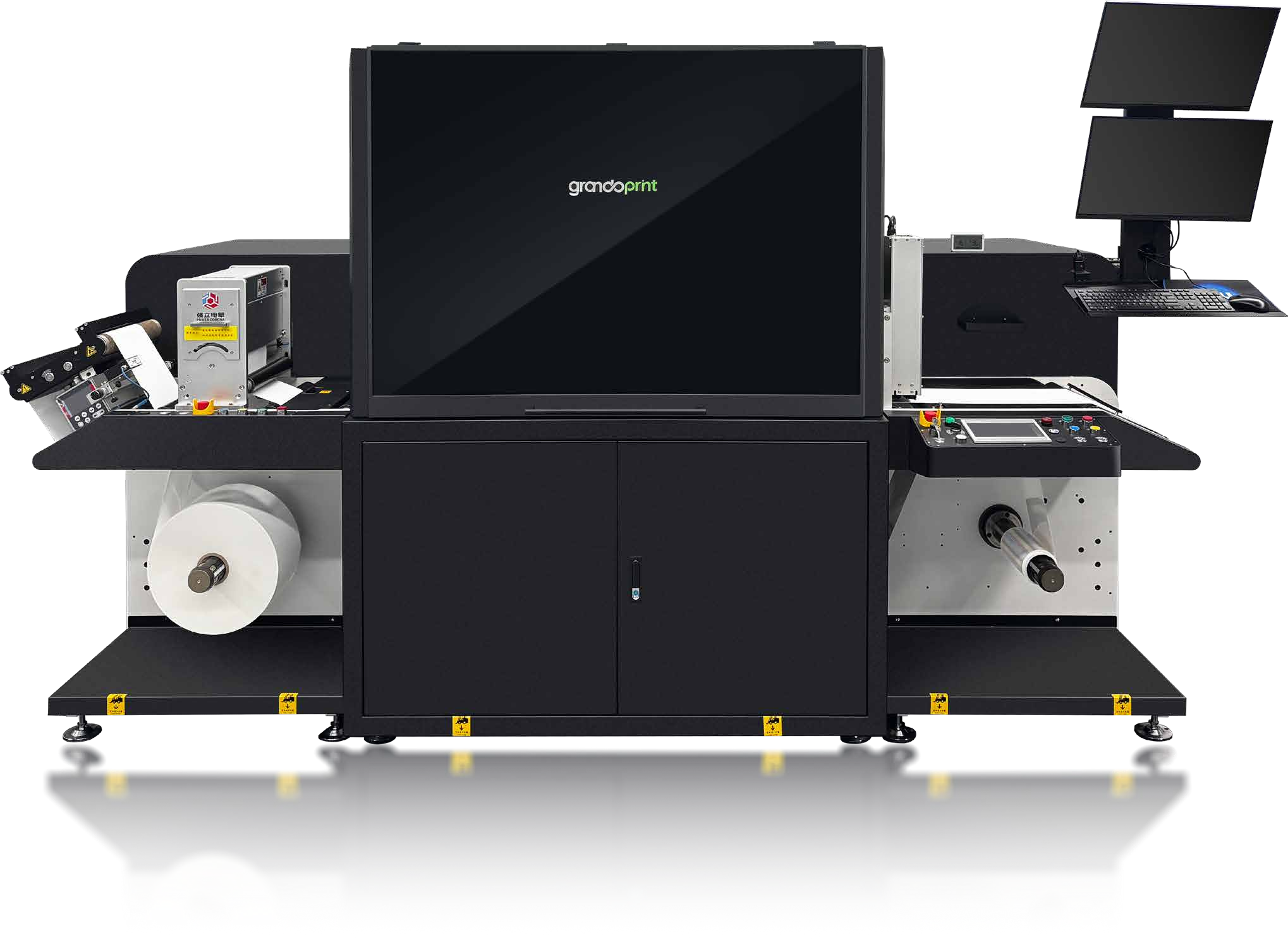

High Speed Digital Label Printer
GR350S
Roll-fed UV digital inkjet label printer with variable data, stable media handling, optional coating and production speed of 20-100 m/min.
Built for label production
A digital label press for short runs, variable data and efficient color production.
GR350S expands personalized label printing, supplements flexographic production and helps optimize color label workflows with high efficiency and lower operating cost.
20-100m/min
120-360mm media
1200 x 600dpi
Product film
Video

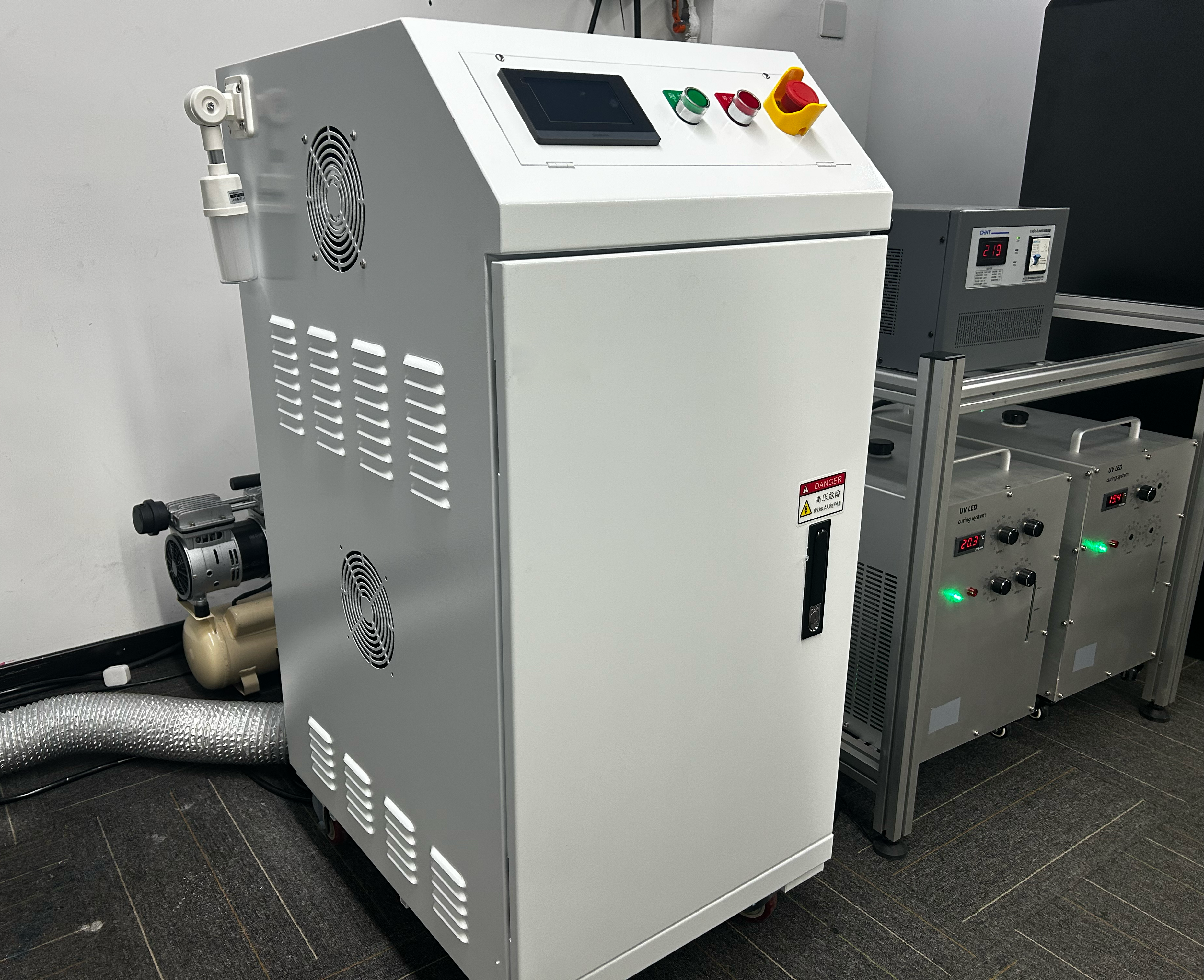

Integrated production modules
From media preparation to curing, every module supports stable high-speed output.
Key features
Detailed components, separated into production-ready modules.
01
02

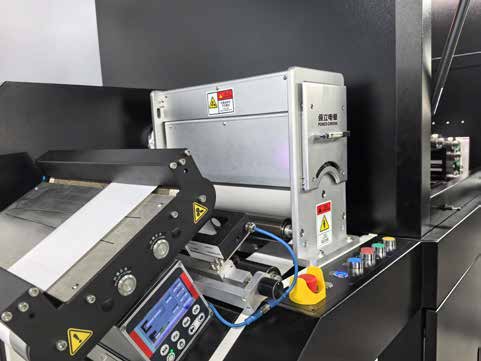

Corona system
Processes PE, PET and BOPP film surfaces to enhance ink adhesion before printing.
03

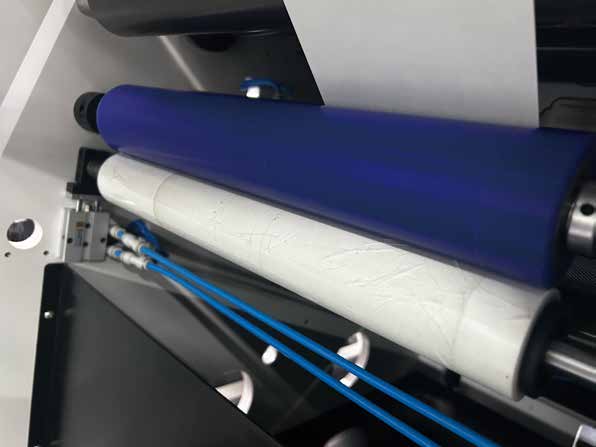

Dust removal and static elimination
Reduces dust and static on material surfaces to protect printed image quality.
04

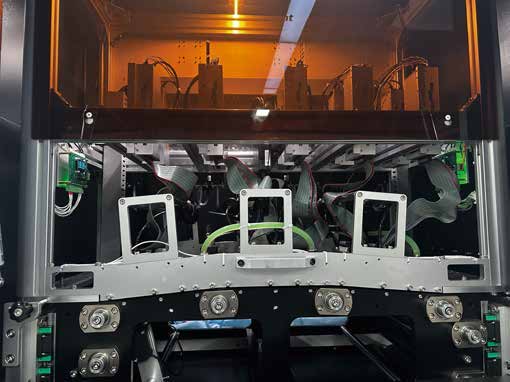

Inkjet printing unit
Seamless printhead assembly supports consistent color and reduces registration fluctuations.
05

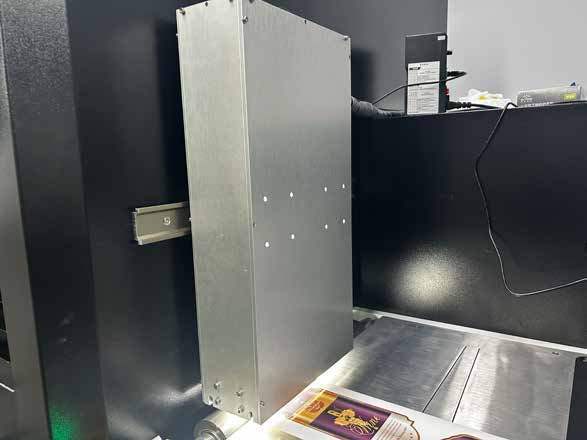

Automatic printhead calibration
Quick calibration when changing materials helps maintain high-quality output.
06

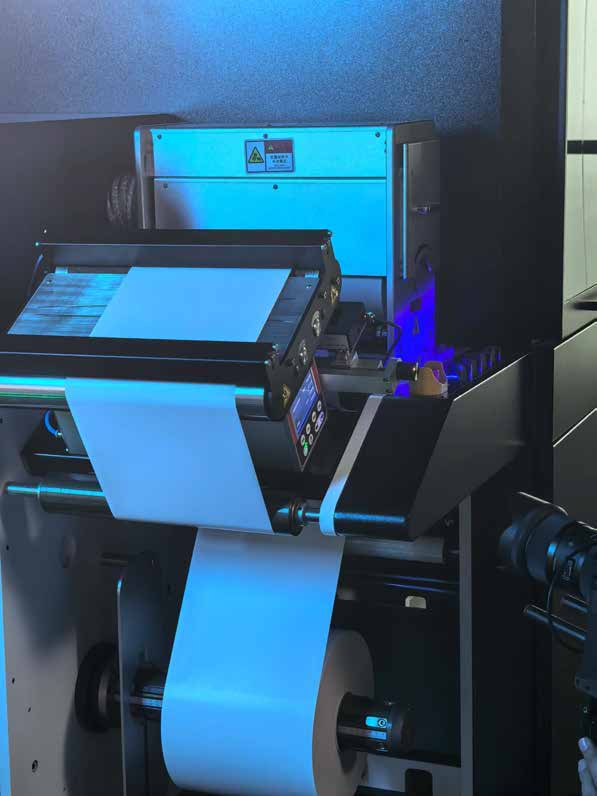

Intelligent deviation correction
Automatic correction keeps media feeding stable during high-speed label production.
07

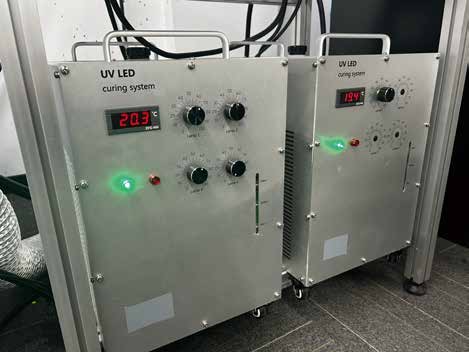

Dual UV curing
Dual UV lights help ensure image fastness and gloss effect after printing.
08
Variable Data Processing
Image data and variable data are processed separately, enabling direct database printing without batch PDF conversion.
Workflow advantages
Variable data, safe printhead clearance and spot varnish enhancement.
Variable data processing
Image data and variable data are processed separately, enabling direct database printing without batch PDF conversion.
Safe and multifunctional
A 2-3 mm height difference between printhead surface and material helps protect printheads and expand material compatibility.
Spot varnish enhancement
Localized gloss and tactile effects highlight visual elements such as logos and icons.
Operation videos
Training and operation clips for customer review.
Technical Specifications
ModelGR350S
Print HeadEPSON S3200-U1/U3
Printing TechnologyPiezoelectric inkjet printing
Acceptable Media120-360mm
Printing Width110-350mm
Printing Speed20-100m/min
Printing Resolution1200*600dpi
Unwinding DiameterMaximum 700mm
InkCMYKW+Varnish (Optional)
Power Supply380V
Power Consumption10kw
Air Pump Pressure>0.6Mpa
Air Pump Flow Rate>10L/min
Applicable productsWriting Paper, White Card Paper, Coated Paper, Synthetic Paper, PVC, PET, PE, PP, OPP, etc.
EnvironmentTemperature: 68°F to 80.6°F [20°C to 27°C] / Humidity: 40 to 70%
Dimension2850(W) * 1400(D) * 2040(H)mm
